Radar level measurement

(Available languages: English, Deutsch, Français)

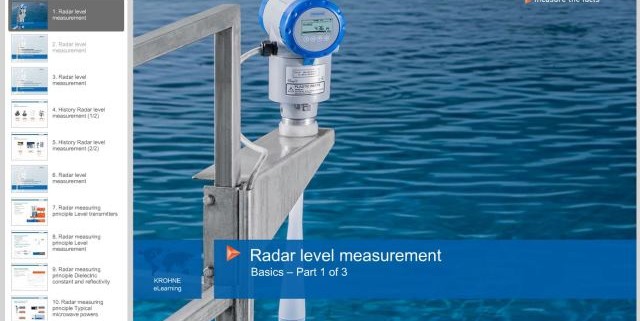

Module 1 (duration approx. 20 min)
  • History and radar measuring principle
  • Functionality of pulse and FMCW radar level measurement
  • Comparison of pulse and FMCW radar
Module 2 (duration approx. 14 min)
  • Frequency and antenna types
Module 3 (duration approx. 15 min)
  • Design of radar level transmitters
  • Calibration of radar level transmitters
  • Limitations/advantages of the measuring principle
  • Installation notes
  • Industries and applications

FMCW Radar Level Measurement: 24 GHz and 80 GHz technology in comparison

The video compares a 24GHz and an 80GHz FMCW radar level transmitter. Advantages and similarities of these two devices will be shown and conclusions presented.

Topics are:

  • System dynamics using the example of low reflective media
  • Radiation pattern of the antenna
  • Advantages of flush mounted lens antennas
  • Measurement through walls and foils
  • Measurement through grids and sieves
  • Signal bandwidth
  • Application examples and cleaning with Sprayballs
